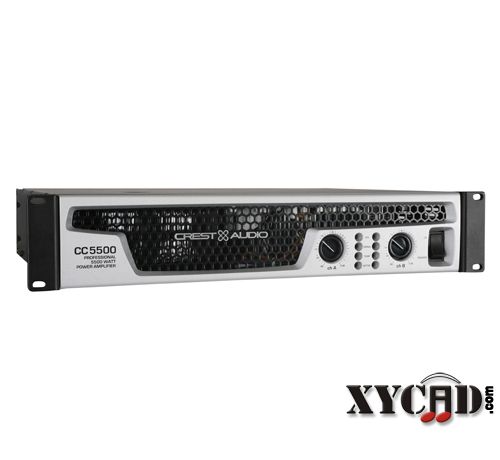

Top Model: CC 5500
Class, PSU: H
Power: 1,800 W @ 4 ohms
Size x Depth: 2U x 14.9 inches
Weight: 47 pounds
Damping: > 400
Sensitivity: 2.18 V
Inputs: 2 x Combo XLR
Outputs: 2 x Speakon and binding posts
http://www.crestaudio.com

Top Model: I-T12000 HD
Class: I
Power: 4,500 W @ 4 ohms
Size x Depth: 2U x 16.2 inches
Weight: 28 pounds
Damping: > 5,000
Sensitivity: 1.4 V to 7.7 V in 0.1 V steps
Inputs: 2x XLR plus AES and CobraNet
Outputs: 2x Speakon and binding posts
http://www.itechhd.com

Top Model: HPA 3000L
Class: HD
Power: 1,200 W @ 4 ohms
Size x Depth: 2U x 16.5 inches
Weight: 31 pounds
Damping: > 1,000
Sensitivity: 26 or 32 dB or 1.4 V
Inputs: 2 x XLR M & F
Outputs: 2 x Speakon
http://www.dbtechnologies.com

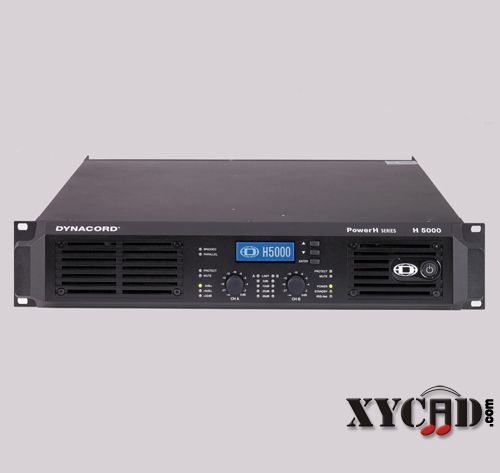

Top Model: H 5000
Class: H
Power: 2,500 W @ 4 ohms
Size x Depth: 2U x 19.6 inches
Weight: 32 pounds
Damping: > 400
Sensitivity: 32, 35 or 41 dB
Inputs: 2 x XLR M&F
Outputs: 2 x Speakon and binding posts
http://www.dynacord.com

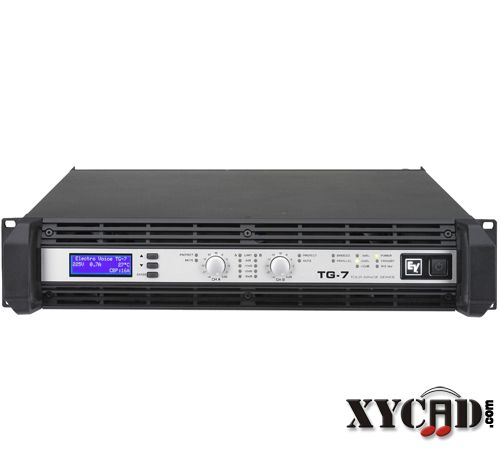

Top Model: TG-7
Class: H
Power: 2,500 W @ 4 ohms
Size x Depth: 2U x 19.6 inches
Weight: 32 pounds
Damping: > 400
Sensitivity: 32, 35 or 41 dB
Inputs: 2 x XLR M&F
Outputs: 2 x Speakon and binding posts
http://www.electrovoice.com

pzpj · 发表于 2010-9-6 23:31

Top Model: F2000TX
Class: H
Power: 2,000 W @ 4 ohms
Size x Depth: 2U x 18.1 inches
Weight: 53 pounds
Damping: > 500
Sensitivity: 32, 35 or 41 dB
Inputs: 2 x XLR M&F
Outputs: 3 x Speakon
http://www.faceaudio.com

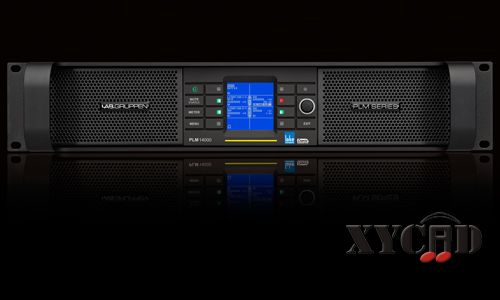

Top Model: PLM 14000
Class: TD
Power: 4,300 W @ 4 ohms
Size x Depth: 2U x 18 inches
Weight: 30 pounds
Damping: N/A
Sensitivity: 22 to 44 dB in 0.1 dB steps
Inputs: 2 x XLR M&F plus AES & Dante
Outputs: 2 x Speakon or binding posts
http://www.labgruppen.com

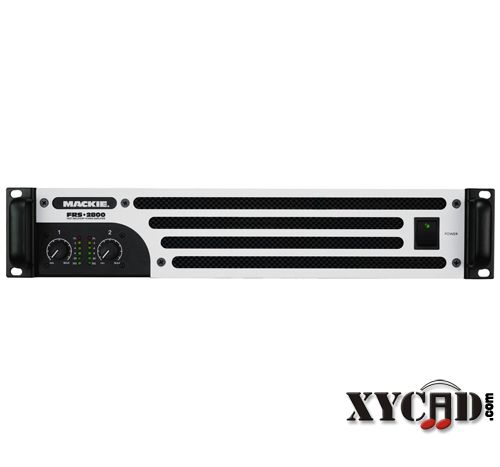

Top Model: FRS 2800
Class: H
Power: 850 W @ 4 ohms
Size x Depth: 2U x 14.7 inches
Weight: 22 pounds
Damping: > 300
Sensitivity: 1.15 V
Inputs: 2 x XLR and 2x TRS
Outputs: 3 x Speakon and binding posts
http://www.mackie.com

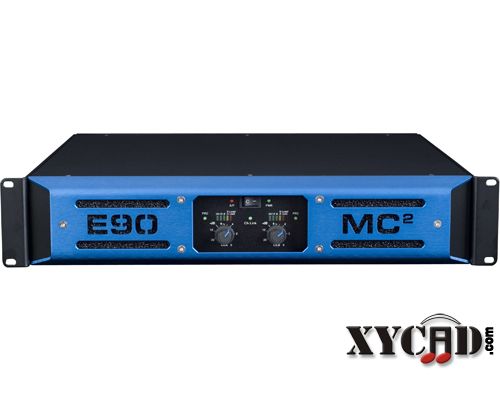

Top Model: E 90
Class: D
Power: 4,500 W @ 4 ohms
Size x Depth: 2U x 16.8 inches
Weight: 25.3 pounds
Damping: > 400
Sensitivity: 32, 35.75 or 38 dB
Inputs: 2 x XLR M&F
Outputs: 2 x Speakon
http://www.mc2-audio.com

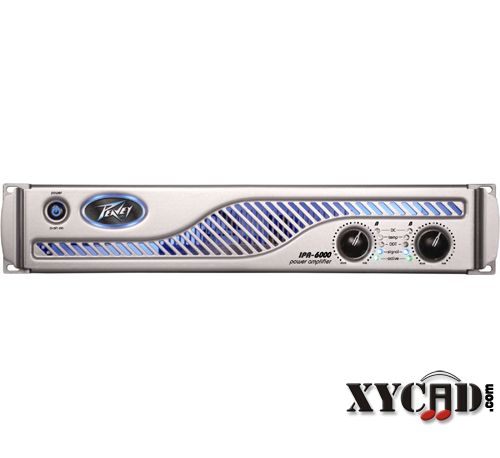

Top Model: IPR 6000
Class: D
Power: 4,000 W @ 4 ohms
Size x Depth: 2U x 14.7 inches
Weight: 25.3 pounds
Damping: > 170
Sensitivity: 0.775 V
Inputs: 2 x Combo XLR and barrier strips
Outputs: 2 x Speakon and binding posts
http://www.peavey.com

pzpj · 发表于 2010-9-6 23:36

本帖最后由 pzpj 于 2010-9-6 23:41 编辑

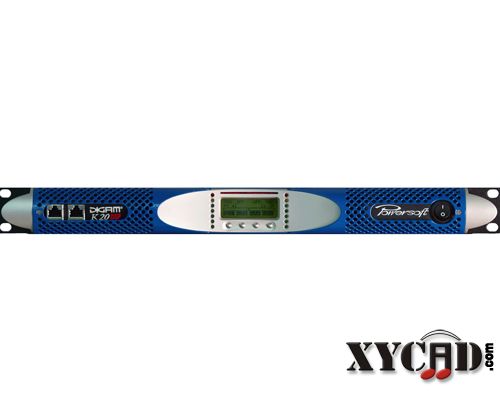

Top Model: K 20
Class: D
Power: 5,200 W @ 4 ohms
Size x Depth: 2U x 15 inches
Weight: 26.5 pounds
Damping: > 5,000
Sensitivity: 26, 29, 32 or 35 dB
Inputs: 2 x Combo XLR
Outputs: 2 x Speakon
http://www.k-series.it

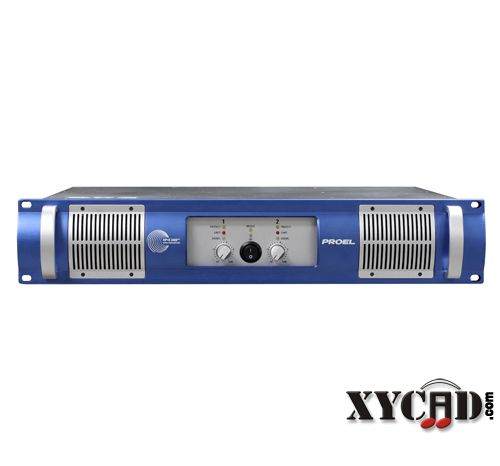

Top Model: HP-D3400pfc
Class: D
Power: 1,700 W @ 4 ohms
Size x Depth: 2U x 18.7 inches
Weight: 24.3 pounds
Damping: > 200
Sensitivity: 32 or 40 dB
Inputs: 2 x Combo XLR and 2 x XLRM
Outputs: 3 x Speakon
http://www.proel.com

Top Model: HPA 3000L
Class: HD
Power: 1,200 W @ 4 ohms
Size x Depth: 2U x 16.5 inches
Weight: 31 pounds
Damping: > 1,000
Sensitivity: 26 or 32 dB or 1.4 V
Inputs: 2x XLR M & F
Outputs: 2x Speakon
http://www.rcf-usa.com

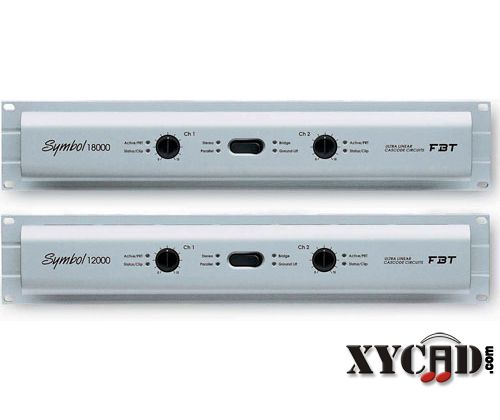

Top Model Symbol 18000
Class H
Power 1,300 W @ 4 ohms
Size x Depth 2U x 18.1 inches
Weight 61.6 pounds
Damping > 250
Sensitivity 2.0 V
Inputs 2 x XLR M&F
Outputs 3 x Speakon
http://www.fbtusa.net

pzpj · 发表于 2010-9-6 23:40

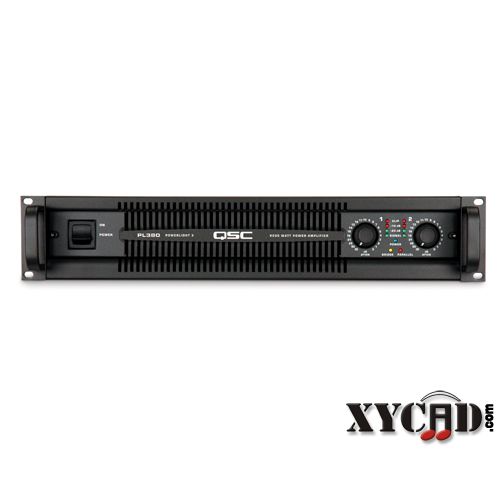

Top Model: PL 380
Class: D
Power: 2,500 W @ 4 ohms
Size x Depth: 2U x 15 inches
Weight: 24 pounds
Damping: > 200
Sensitivity: 26 or 32 dB or 1.2 V
Inputs: 2 x XLR M & F
Outputs: 2 x Speakon and binding posts
http://www.qscaudio.com

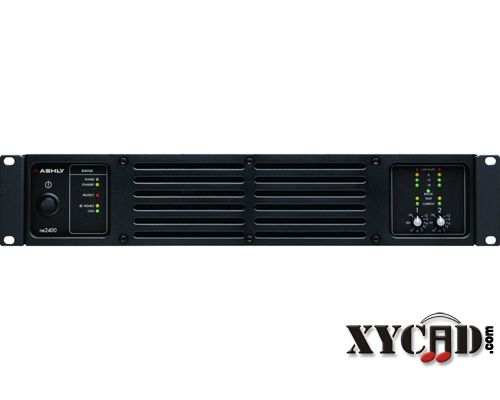

Top Model: ne2400
Class: D
Power: 1,200 W @ 4 ohms
Size x Depth: 2U x 15.5 inches
Weight: 21 pounds
Damping: > 250
Sensitivity: 26 or 32 dB or 1.4 V
Inputs: 2 x XLR and EuroBlock
Outputs: 2 x Speakon and EuroBlock
http://www.ashly.com

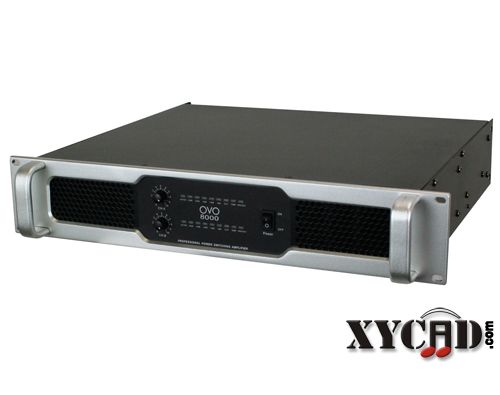

Top Model: OVO 8000
Class: H
Power: 2,600 W @ 4 ohms
Size x Depth: 2U x 16 inches
Weight: 27 pounds
Damping: > 1,000
Sensitivity: 26, 32 or 41 dB
Inputs: 2 x Combo XLR
Outputs: 2 x Speakon and EuroBlock
http://www.biema.us

Top Model: D-Power 4
Class: H
Power: 1,900 W @ 4 ohms
Size x Depth: 2U x 16.5 inches
Weight: 21 pounds
Damping: > 400
Sensitivity: 26 or 32 dB or 1.4 V
Inputs: 2 x XLR M&F
Outputs: 2 x Speakon
http://www.camcoaudio.com

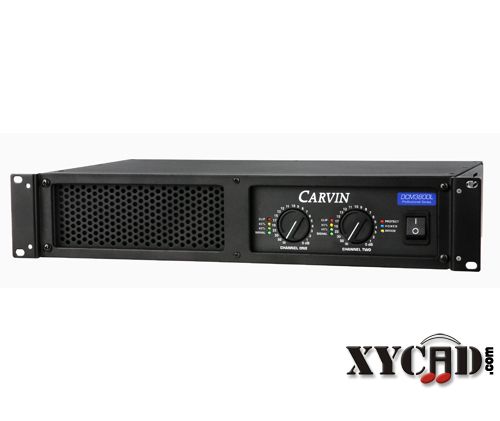

Top Model: DCM3800L
Class: AB
Power: 1,150 W @ 4 ohms
Size x Depth: 2U x 10.5 inches
Weight: 15 pounds
Damping: > 500
Sensitivity: 1.0 V
Inputs: 2 x XLR M&F plus 2 x TRS
Outputs: 3 x Speakon and binding posts
http://www.carvin.com
